Article: 1602
Design & construction: API 600, API 6D
Face to face length: ASME / ANSI B16.10
Connections & dimensions: ASME / ANSI B16.5, ASME / ANSI B 16.25
Flanges: RF ANSI #300
Pressure & temperature: ASME / ANSI B16.34
Test: API 598

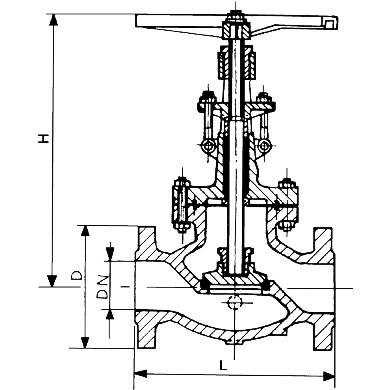

The cast steel globe valves are manufactured according to API, ANSI, ASME standard, for industrial applications. The cast steel globe valves have: outside screw and yoke, bolted bonnet, rising stem with top sealing. Standard materials are A216WCB/F6, other materials and other trims are available upon request. Handwheel operated, with reducing gear upon request.
Materials
| body-bonnet |
cast steel A216WCB, GP240GH+N |
| stem |
A 182 F6 |
| body seat facing |
A182 F6 |
| disc seat facing |
A182 F6 |
| stem packing |
graphite |
| gasket |
graphite |
| painting |
high chlorinated polyethylene HCPE |
| DN |
L mm. |
H mm. |
D mm. |
Weight kg. |
| 2" |
267 |
280 |
165 |
29 |
| 3" |
318 |
400 |
210 |
54 |
| 4" |
356 |
460 |
254 |
74 |
| 6" |
445 |
620 |
318 |
145 |
| 8" |
559 |
710 |
381 |
210 |
| 10" |
622 |
790 |
444 |
369 |
| 12" |
711 |
880 |
521 |
474 |
| 14" |
838 |
1200 |
584 |
650 |
| 16" |
864 |
1400 |
648 |
850 |
| Hydrostatic test |
Pneumatic test |
| shell |
seat |
| bars |
psig |
bars |
psig |
bars |
psig |
| 78 |
1130 |
58 |
840 |
≥ 5,6 |
≥ 80 |
