Article: 1603
Design & construction: API 600, API 6D
Face to face length: ASME / ANSI B16.10
Connections & dimensions: ASME / ANSI B16.5, ASME / ANSI B 16.25
Flanges: RF ANSI #600
Pressure & temperature: ASME / ANSI B16.34
Test: API 598

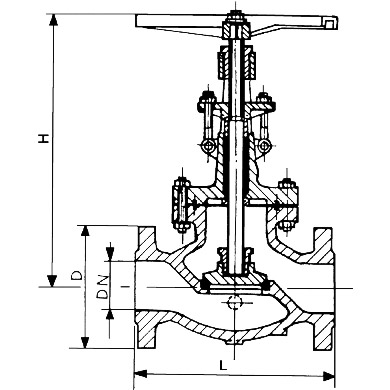

The cast steel globe valves are manufactured according to API, ANSI, ASME standard, for industrial applications. The cast steel globe valves have: outside screw and yoke, bolted bonnet, rising stem with top sealing. Standard materials are A216WCB/F6, other materials and other trims are available upon request. Handwheel operated, with reducing gear upon request.
Materials
| body-bonnet |
cast steel A216WCB, GP240GH+N |
| stem |
A 182 F6 |
| body seat facing |
A182 F6 |
| disc seat facing |
A182 F6 |
| stem packing |
graphite |
| gasket |
graphite |
| painting |
high chlorinated polyethylene HCPE |
| DN |
L mm. |
H mm. |
D mm. |
Weight kg. |
| 2" |
292 |
350 |
165 |
40 |
| 3" |
356 |
545 |
210 |
72 |
| 4" |
432 |
600 |
273 |
121 |
| 6" |
559 |
780 |
356 |
250 |
| 8" |
660 |
840 |
419 |
450 |
| 10" |
787 |
1235 |
508 |
736 |
| 12" |
838 |
1311 |
559 |
960 |
| 14" |
889 |
1450 |
603 |
1115 |
| 16" |
991 |
1650 |
686 |
1400 |
| Hydrostatic test |
Pneumatic test |
| shell |
seat |
| bars |
psig |
bars |
psig |
bars |
psig |
| 153 |
2220 |
116 |
1680 |
≥ 5,6 |
≥ 80 |
